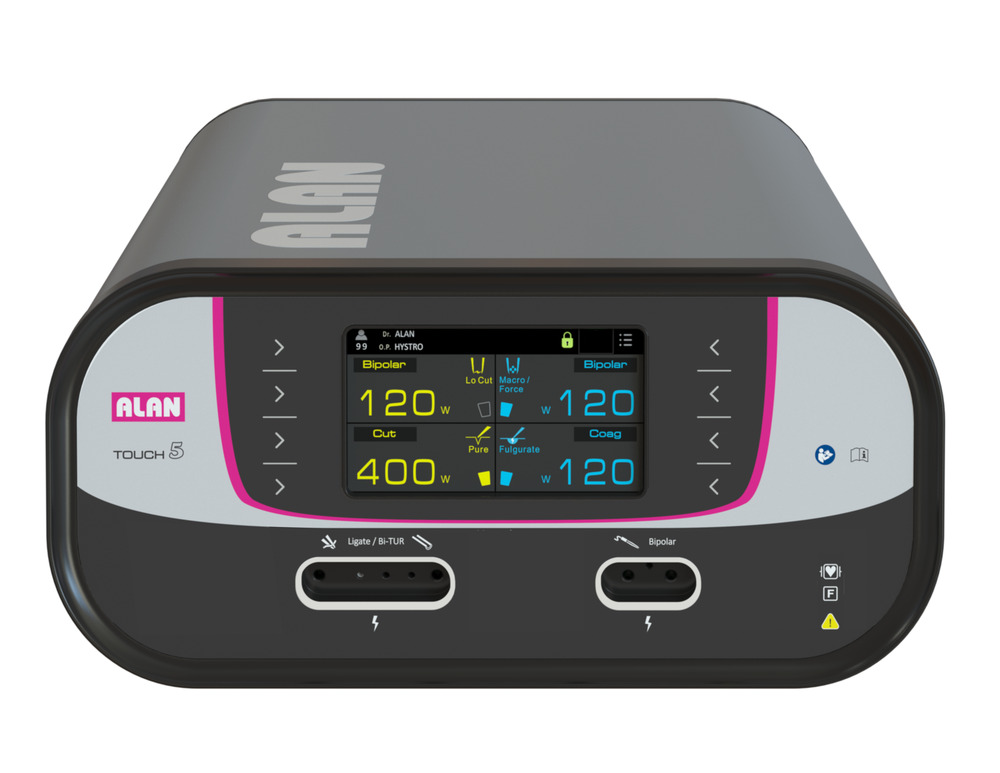

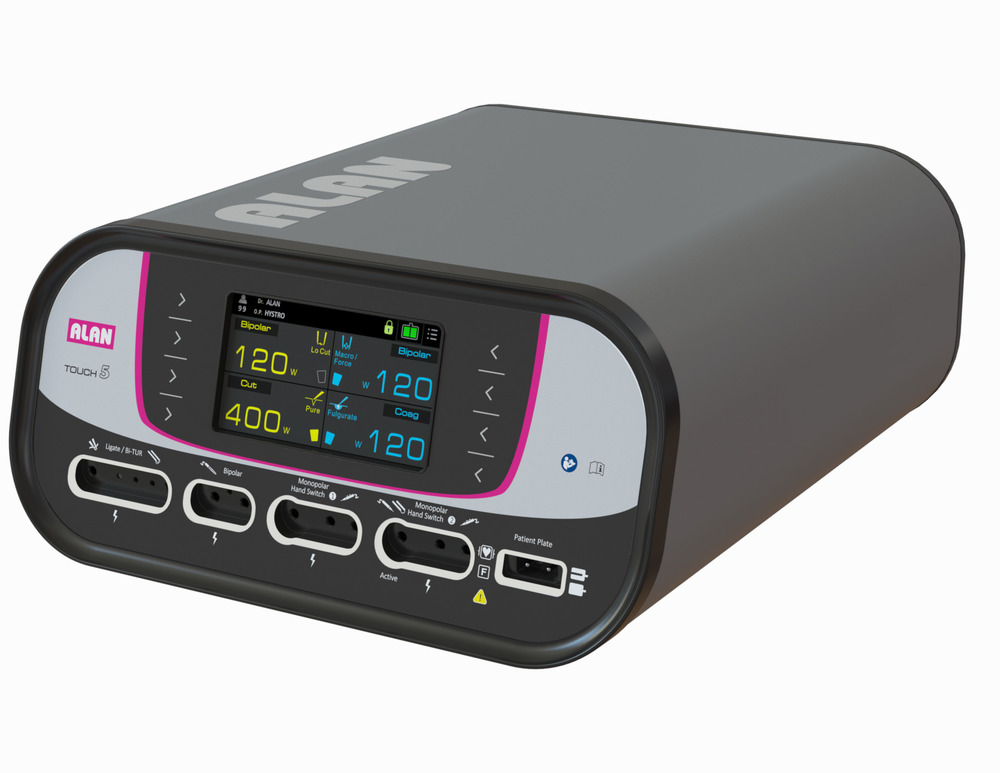

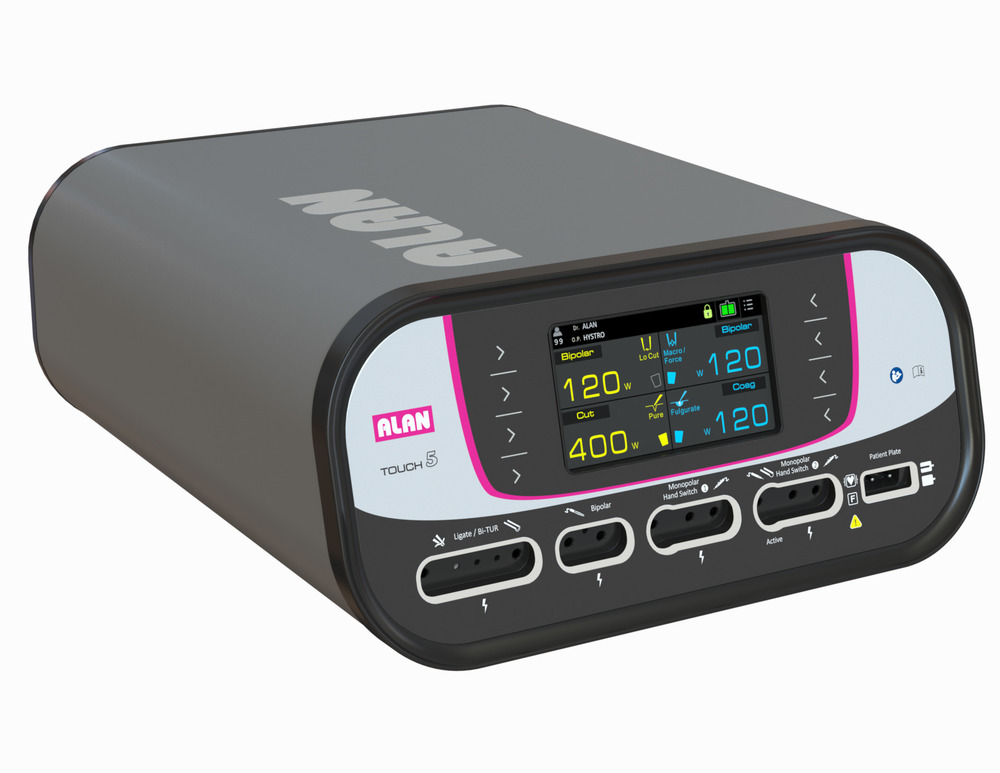

PLASMA Plus Electro Surgical Genertor

Product Description

Feature

• Advance multiple microcontroller based generator for Open and Laparoscopic Surgeries.
• 5-inch LCD touch screen display with intuitive interface, and additional feather touch buttons.
• Intuitive User Interface facilitates easy program and modes selection with Seamless Operations.
• Features 2 Monopolar, 1 Bipolar and 1 Ligate. Socket, for handswitch and footswitch activation
• It is compatible with universal accessories used in Monopolar and Bipolar Surgical Applications,
• Supports ALANs special Capacitive Patient Plate for maximum safety of the patients in surgeries.
• PPCM feature monitors patients contact quality and provides real-time graphical representation
• Self-Test, diagnoses at every START UP for Generators Healthiness & Operational Integrity.
• Automatically stops the power output and provides audio-visual indication during problem.
• Multiple cutting modes with varied regulated wattages for smooth and precise skin incisions.
• It can seal up to 7 mm of vessel thickness and withstand 3 times systolic and diastolic pressure.
• 7 different ligation levels are programmed for different vessel size and varied tissue vascularity.
• It has Isolated Monopolar and Bipolar outputs, Eliminating the Frequent need for Switch Overs
• HF power output can be adjusted using touch screen and handswitch pencil from sterile field.
• Simultaneous monopolar coagulation for 2 surgeons via handswitch and footswitch pairing.
• Tissue monitoring technology measure Tissue Impedance & Dynamically varies the HF Output.
• System restores previous activated power settings when encountered power interruptions.
• HF current leakage monitoring & controlling system supervises and controls it less than 10 uA.
• 99+1 user programmable memory for surgeons. to store & recall surgery preferences and details.
• Upgradeable and compatible with Argon Plasma Coagulation & Smoke Evacuator System

Description

Monopolar Cut Modes:

• Pure : 400 W @ 350 Ohms CF 1.5
• Lapcut : 300 W@350 Ohms CF 1.5 Input
• Blend : 250 W @ 350 Ohms (10 Levels) CF Variable
• EndoCut : 300 W @ 350 Ohms (10 Levels) CF Varied

Monopolar Coagulation Modes:

• Spray : 120 W@350 Ohms CF 9.0
• Fulgurate : 150 W @ 350 Ohms CF 7.5
• Desiccate : 200 W @ 350 Ohms CF 3.0
• Soft : 300 W @ 150 Ohms CF 1.5
• Auto Desiccate: Monopolar Desiccate with Auto-Stop
• Auto Soft: Monopolar Soft with Auto-Stop

Bipolar Cut Modes:

• LoCut : 120 W @ 100 Ohms CF 1.5
• HiCut : 120 W @ 100 Ohms CF 1.5
• ScalCut : 200 W @ 100 Ohms (5 Levels) CF 1.5

Bipolar Coagulation Modes:

• Cut/Standard : 120 W @ 100 Ohms CF 1.5
• Macro/Force : 120 W @ 100 Ohms CF 1.5
• Micro/Precise : 100 W @ 100 Ohms CF 1.5
• Auto Micro: Bipolar Micro with Auto-Stop
• Auto Start: Auto-Start, Auto-Stop

Bipolar Saline Resection:

• LowCut : 250 W @ 200 Ohms CF 1.5
• HiCut 1 : 300 W @ 200 Ohms CF 1.5
• HiCut 2: 300 W @ 200 Ohms CF 1.5
• Effect 1: 300 W @ 200 Ohms CF 1.5

Bipolar Saline Coagulation:

• Desi : 250 W @ 25 Ohms CF 1.5
• Force: 250 W @ 25 Ohms CF 2.1

• Input : 88-265V AC, 50/60 Hz
• Power Consumption : 750VA Max
• Input Fuse : 5A T
• Output Control : Colour TFT Display with Touch Screen and Push buttons in all Modes
• Max. Power Output : 400 Watts

Safety Standard
